소각 플랜트

INCINERATOR

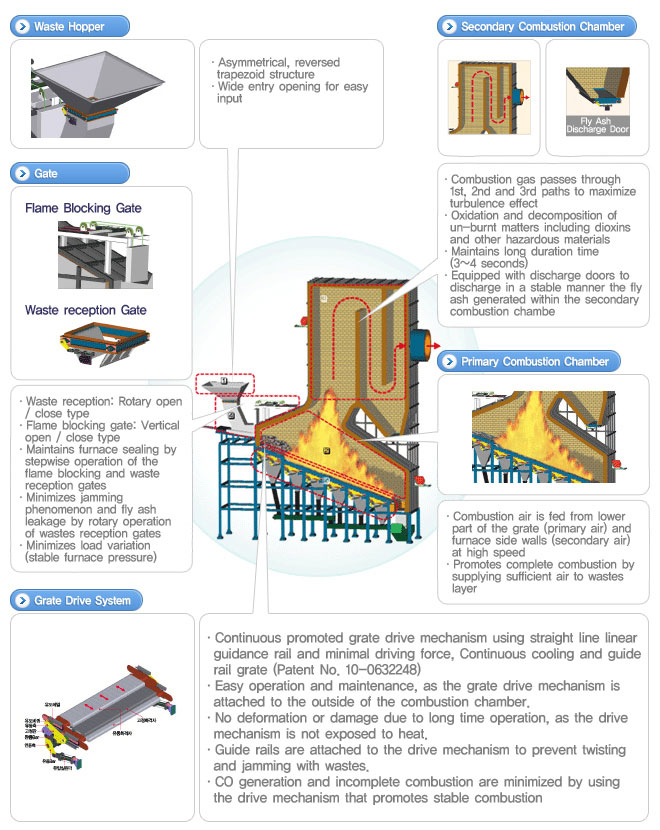

At the stage of incinerator design, gas flow status is identified by performing the velocity distribution analysis
Selects the most ideal velocity profiles when modelling the incinerator
At the stage of incinerator design, it is possible to identify the expected problems due to flow velocity and to modify the structure
Identifies the direction and intensity of velocity when modelling the incinerator
Identifies the temperature distribution within the incinerator and uses it for nozzle direction for SNCR
Applies to incinerator profiles design as per temperature distribution
Predicts and identifies the change in the flow of particulates and gas-phase matters in the combustion gas

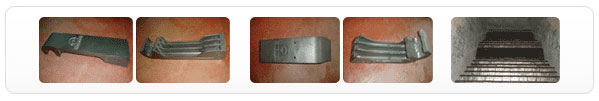

Designs the entire grating for cooling-on to maximize the contact area with combustion air
Installs air nozzles on the front and side faces to maximize cooling effect by preventing the air flow from passing directly to the upper part
Made of special heat resistant alloy (EC-SCH) which is resistant to high temperature abrasion for stable combustion
